Product Details
The YEEDABAKE automatic donut production line combines front and rear conveyors with a 96 L frying tank. Choose the line with proofing cabinets or the version without proofing cabinets to match your production layout.
Configuration Options

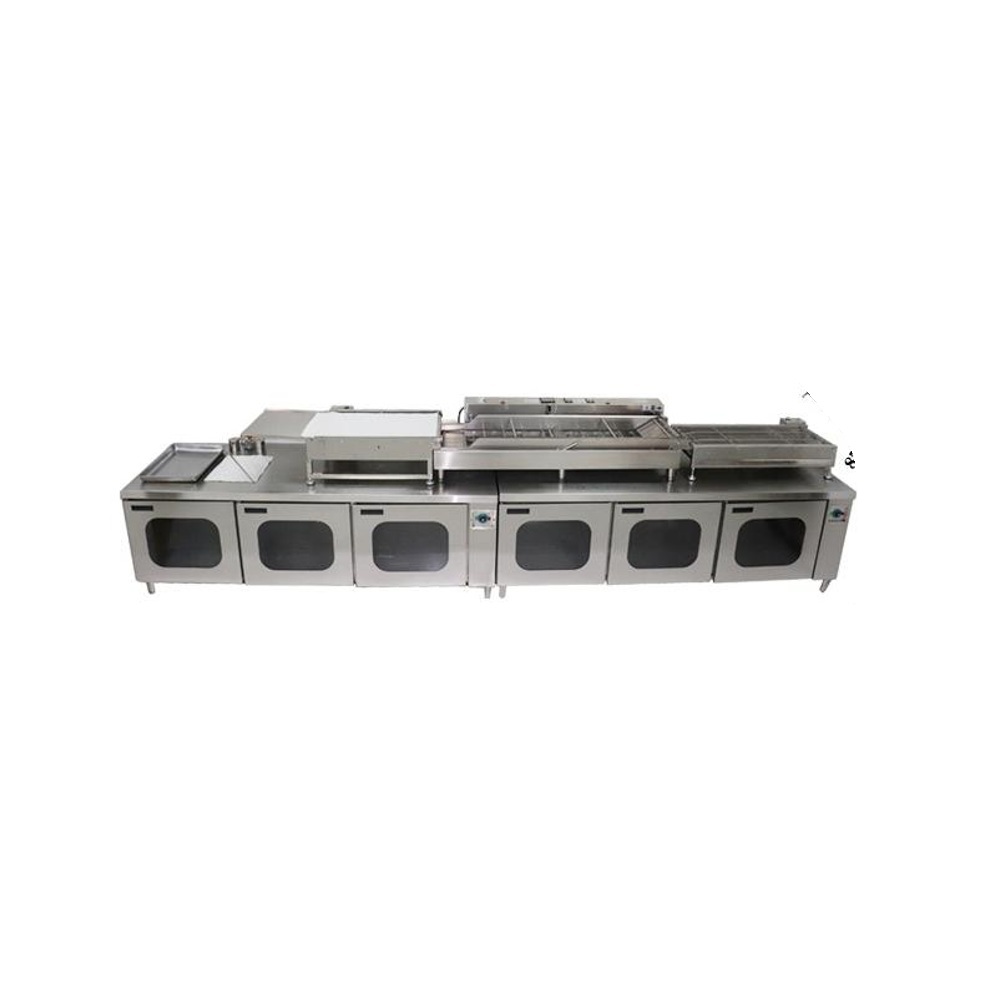

- With proofing cabinets: YB-L4F24SCX-P includes two cabinets, each listed as 2300 × 875 × 780 mm.

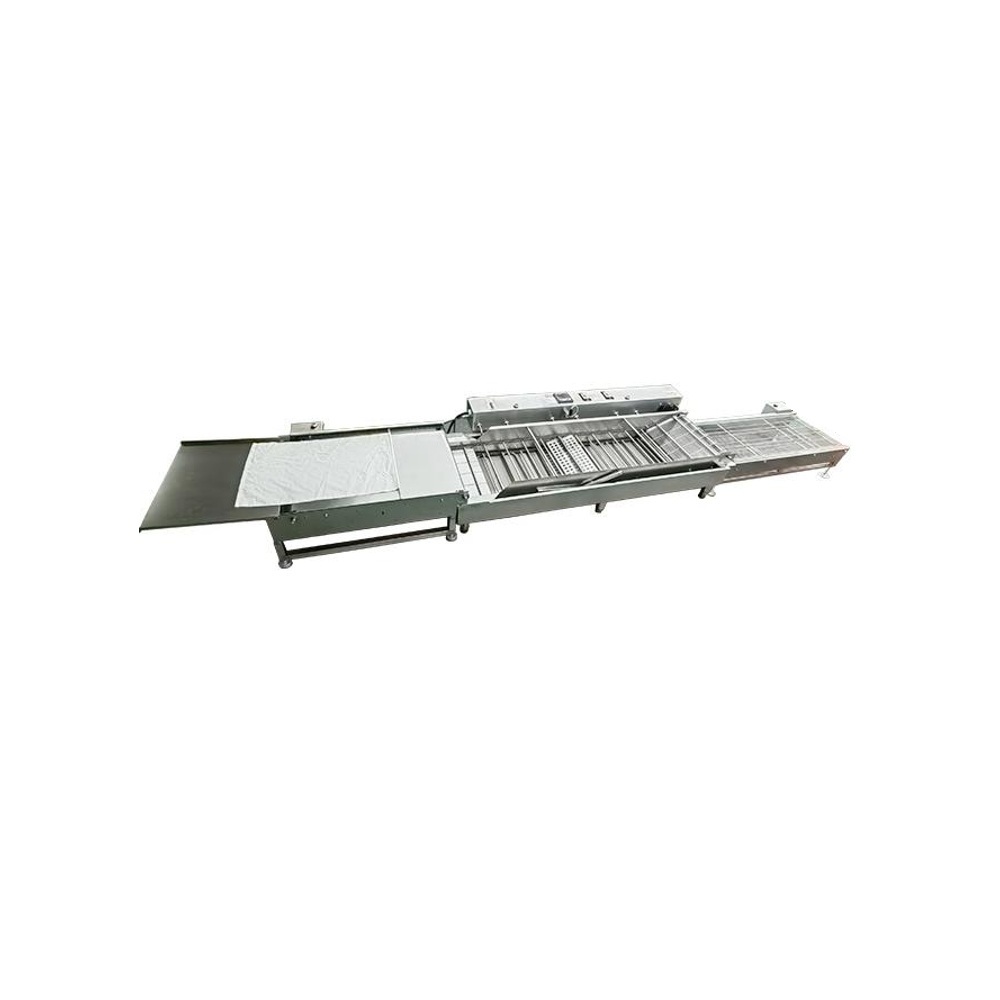

- Without proofing cabinets: YB-L4F24SCX is supplied without the cabinet configuration.
- Stainless steel construction, 380V supply and 10 kW power.
- Catalogue capacity: 2400–9600 pcs/h; product-size range: 30–120 mm.
- Solid and hollow mould types, two sets of each listed in the catalogue.
Donut Production Line Specifications
| Configuration | Model | Voltage / Power | Capacity (pcs/h) | Product Size (mm) | Moulds | Oil Tank (mm) / Capacity | Front Conveyor (mm) | Rear Conveyor (mm) | Proofing Cabinet |
|---|---|---|---|---|---|---|---|---|---|
| With proofing cabinets | YB-L4F24SCX-P | 380V / 10 kW | 2400–9600 | 30–120 | Solid / hollow; 2 sets each | 1525 × 525 × 120 / 96 L | 1220 × 675 × 360 (adjustable) | 1000 × 610 × 280 (adjustable) | 2300 × 875 × 780 mm × 2 |
| Without proofing cabinets | YB-L4F24SCX | 380V / 10 kW | 2400–9600 | 30–120 | Solid / hollow; 2 sets each | 1525 × 525 × 120 / 96 L | 1220 × 675 × 360 (adjustable) | 1000 × 610 × 280 (adjustable) | Not included |
Conveyor dimensions and configuration should be checked against your installation layout. Actual production capacity depends on product, recipe and operating conditions. Confirm the required forming moulds and proofing arrangement before ordering.
Model Selection & Enquiries
Send YEEDABAKE your preferred model, donut size, destination country, voltage and heating requirements for a quotation.
