Product Details
The YEEDABAKE multi-shape donut machine series offers moulds for flower-ring, ball and ring-shaped products, with a catalogue product-size range of 30–120 mm. Choose an automatic conveyor machine, a countertop machine or a freestanding machine.
Forming and heating are separate choices: Manual forming models may still use electric heating. Compare both columns before choosing a model.
1. Automatic Conveyor Models
YB-100S uses electric heating; YB-100BS uses gas heating. Both have a 9 L hopper, three mould shapes and thickness adjustment.
| Model | Forming / Operation | Heating | Voltage | Electrical Power | Capacity (pcs/h) | Hopper (L) | Oil Tank (mm) / Capacity | Net / Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| YB-100S | Automatic conveyor | Electric | 110V / 220V | 6 kW | 300–1200 | 9 | 805 × 310 × 115 / 29 L | 58 / 75 |

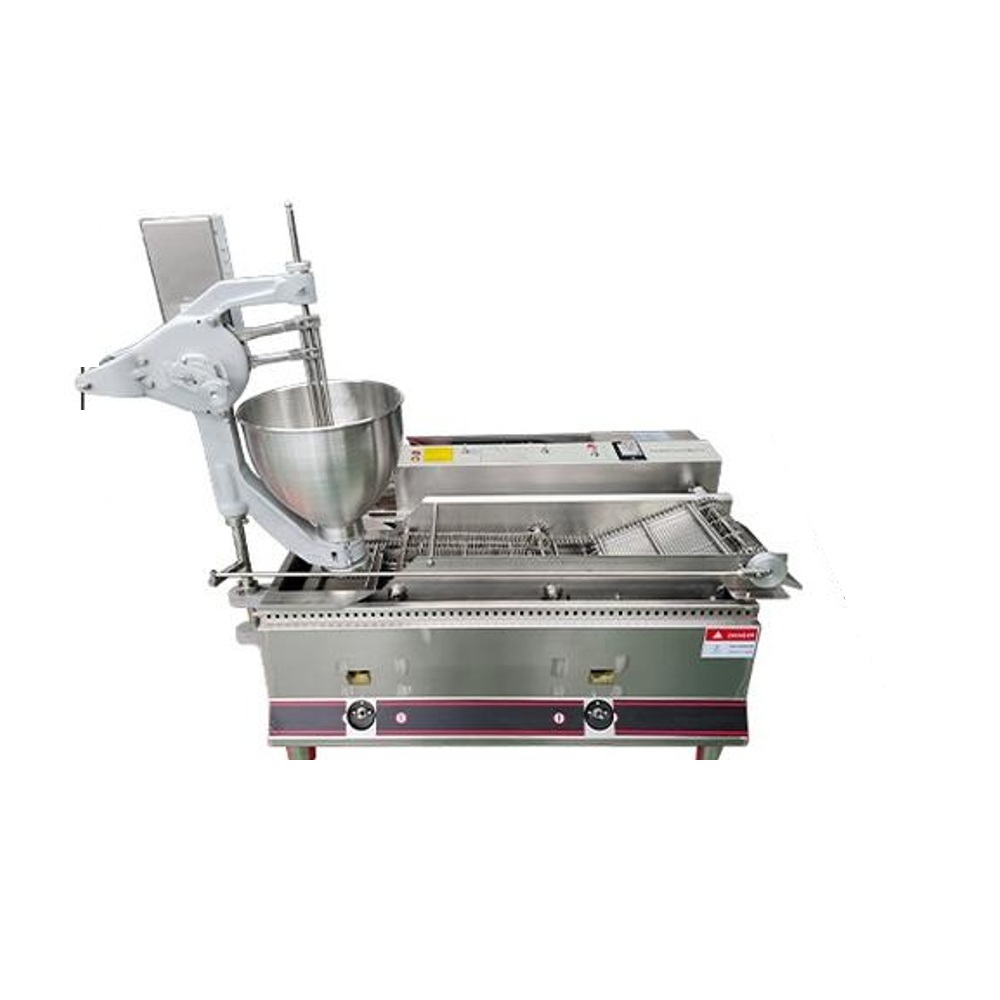

| YB-100BS | Automatic conveyor | Gas (LPG / natural gas) | 110V / 220V | 50 W | Not specified | 9 | 805 × 310 × 115 / 29 L | 65 / 84 |
2. Countertop Models
Compare manual or electric forming with electric or gas heating. These models use a fryer tray rather than the automatic conveyor configuration above.
| Model | Forming / Operation | Heating | Voltage | Electrical Power | Capacity (pcs/h) | Hopper (L) | Oil Tank (mm) / Capacity | Net / Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|

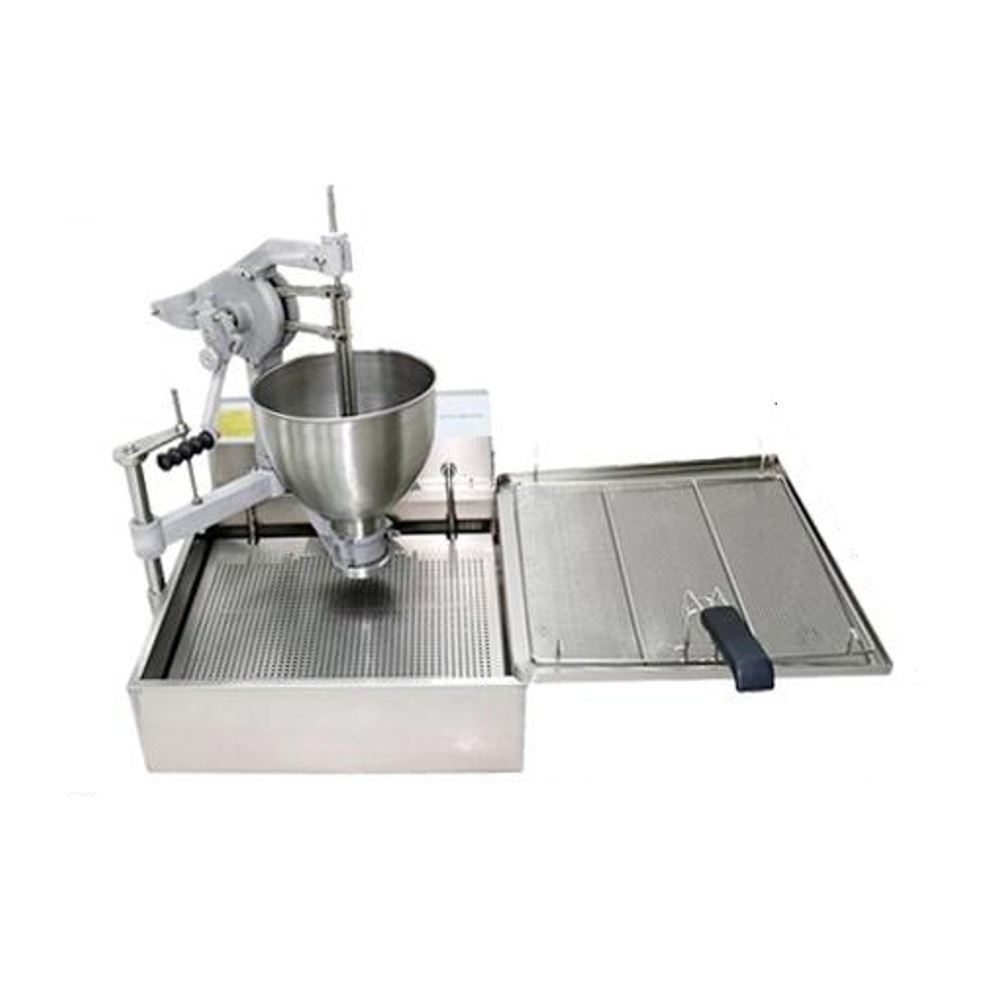

| YB-102 | Manual forming | Electric | 110V / 220V | 3 kW | 300–2000 | 9 | 500 × 500 × 100 / 25 L | 35 / 52 |

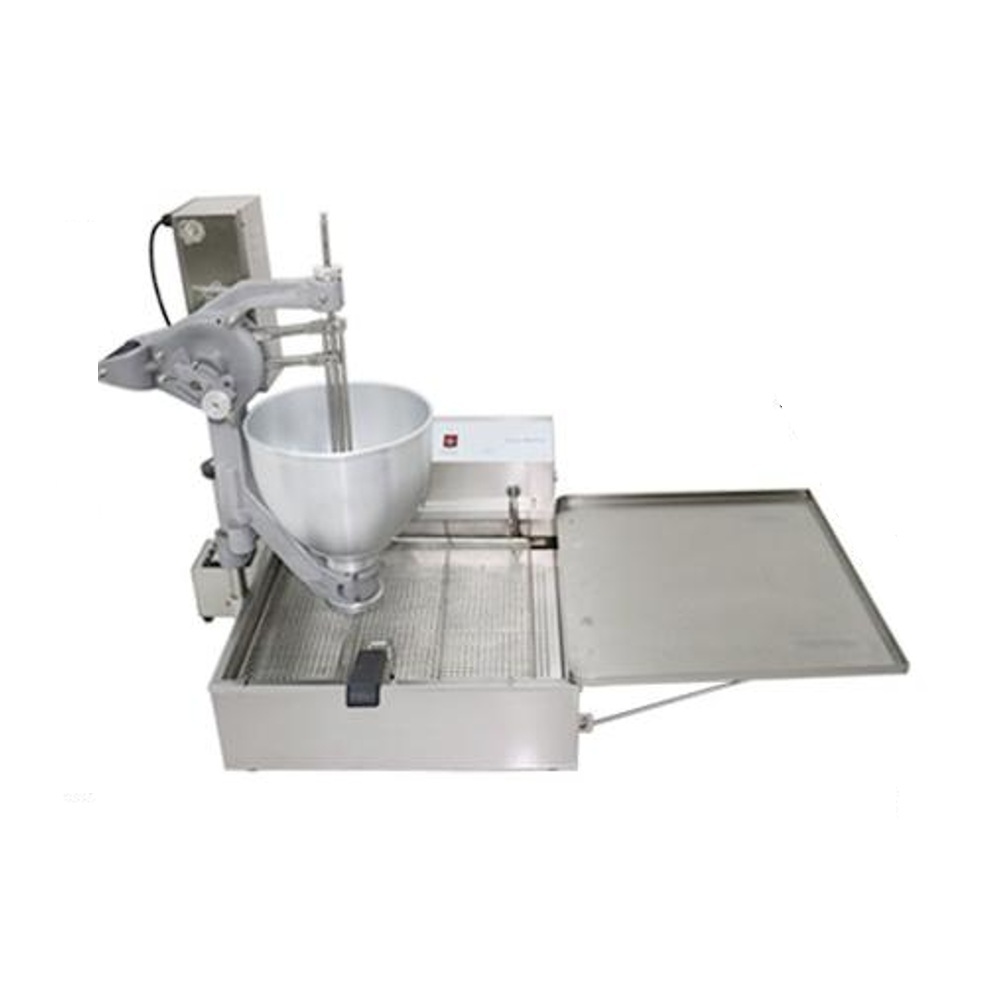

| YB-102S | Electric forming | Electric | 110V / 220V | 3100 W | 300–2000 | 9 | 500 × 500 × 100 / 25 L | 45 / 57 |

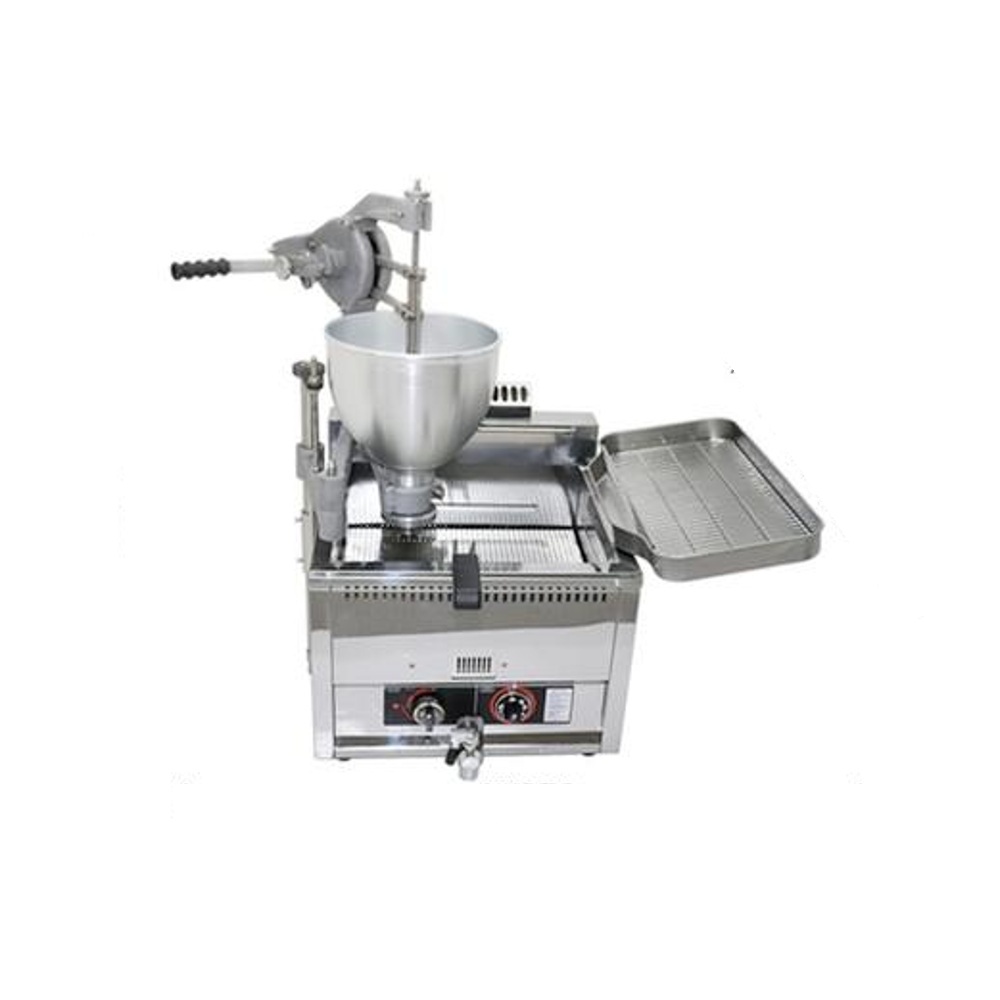

| YB-102RQ | Manual forming | Gas (LPG / natural gas) | Not specified | Not specified | 300–2000 | 9 | 375 × 445 × 260 / 17 L | 35 / 48 |

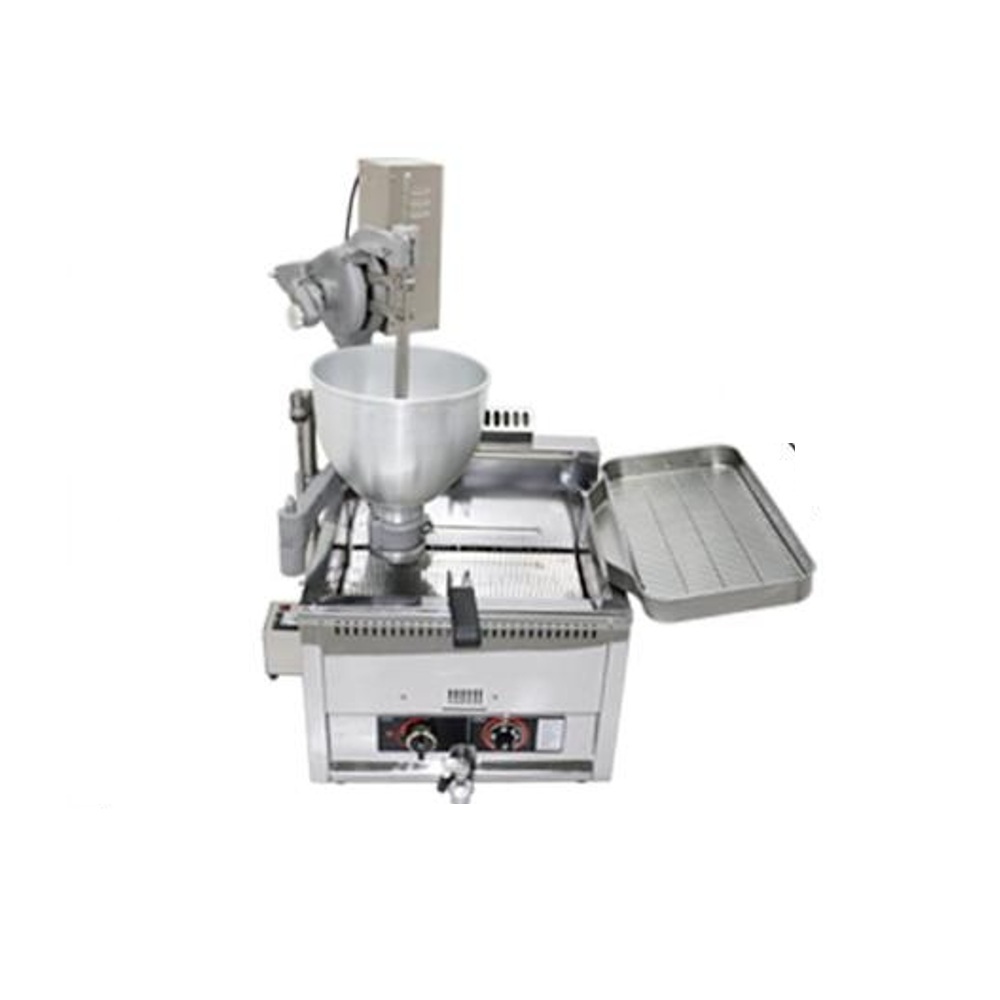

| YB-102SRQ | Electric forming | Gas (LPG / natural gas) | Confirm with enquiry | 50 W | 300–2000 | 9 | 375 × 445 × 260 / 17 L | 45 / 57 |
3. Freestanding Models
Floor-standing versions with a cabinet base, available with manual or electric forming and electric or gas heating.
| Model | Forming / Operation | Heating | Voltage | Electrical Power | Capacity (pcs/h) | Hopper (L) | Oil Tank (mm) / Capacity | Net / Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|

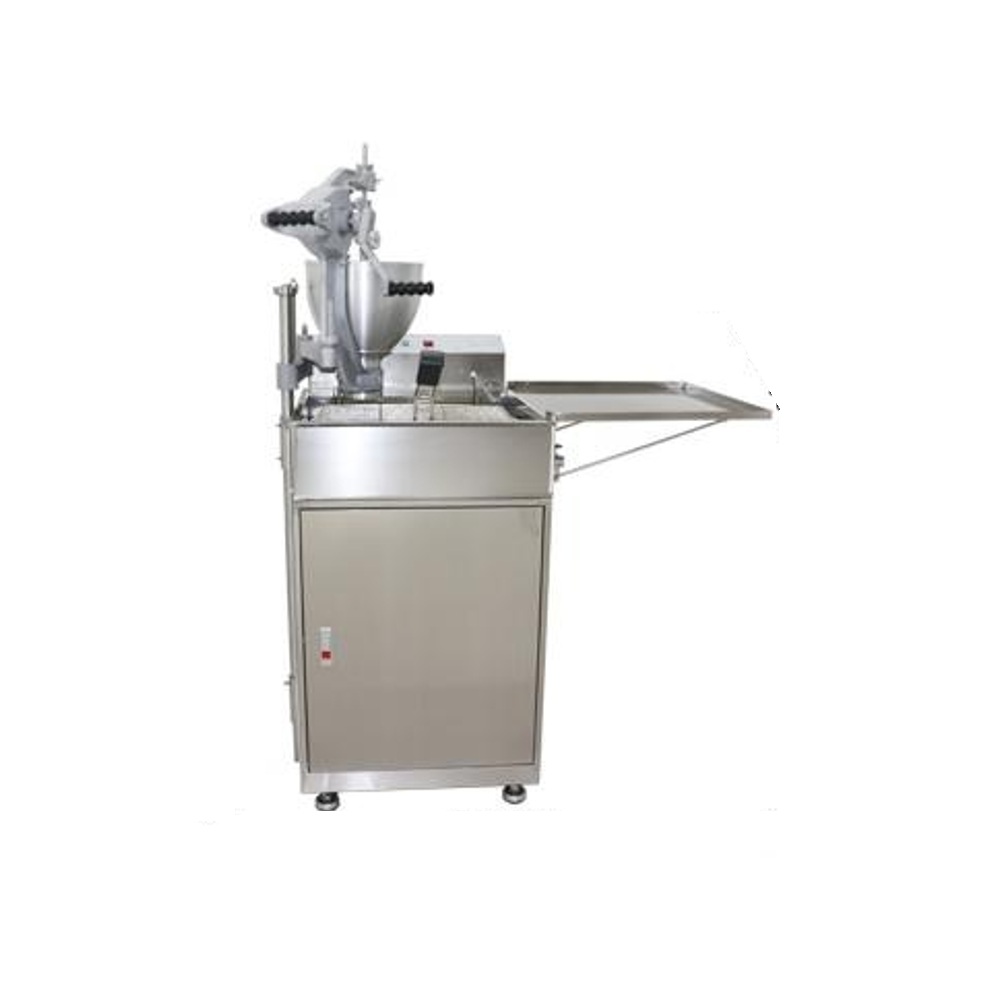

| YB-103 | Manual forming | Electric | 110V / 220V | 3 kW | 300–2000 | 9 | 500 × 500 × 100 / 25 L | 60 / 85 |
| YB-103S | Electric forming | Electric | 110V / 220V | 3 kW | 300–2000 | 9 | 500 × 500 × 100 / 25 L | 60 / 85 |

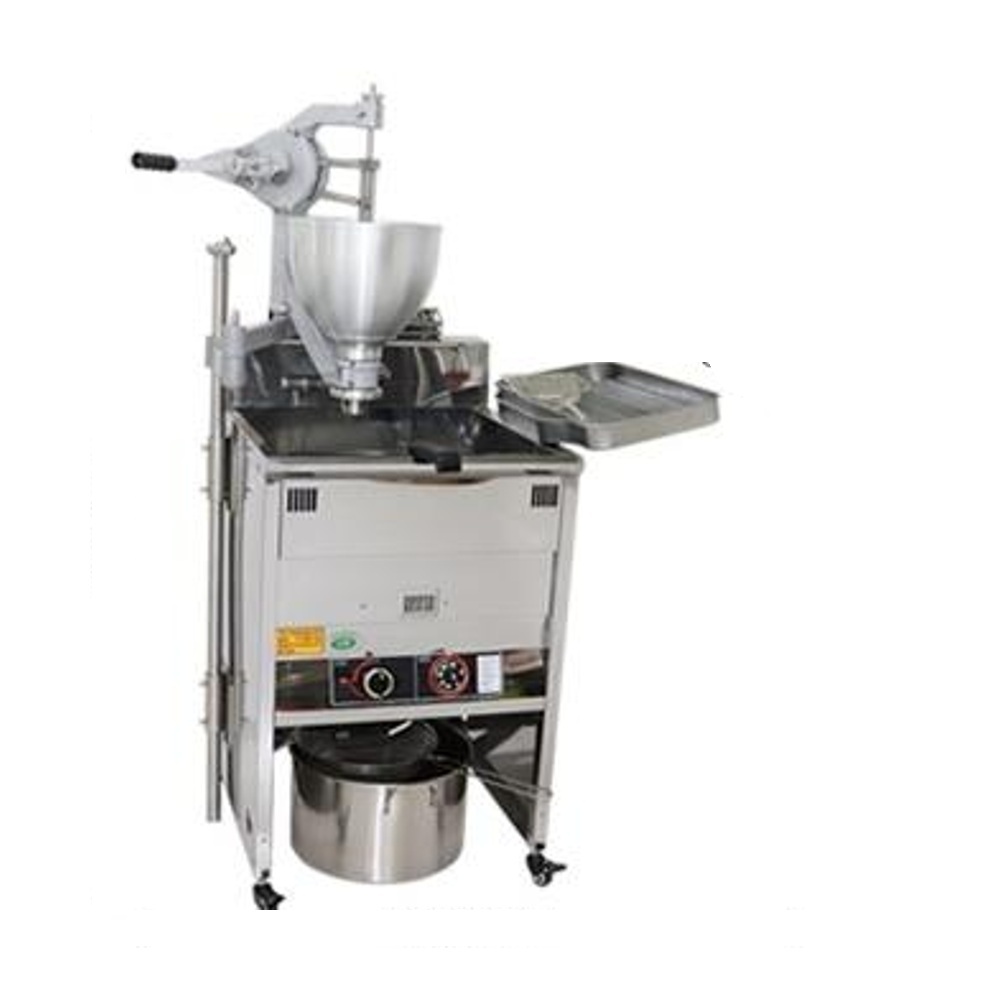

| YB-103RQ | Manual forming | Gas (LPG / natural gas) | Not specified | Not specified | 300–2000 | 9 | 445 × 375 × 195 / 23 L | 70 / 90 |

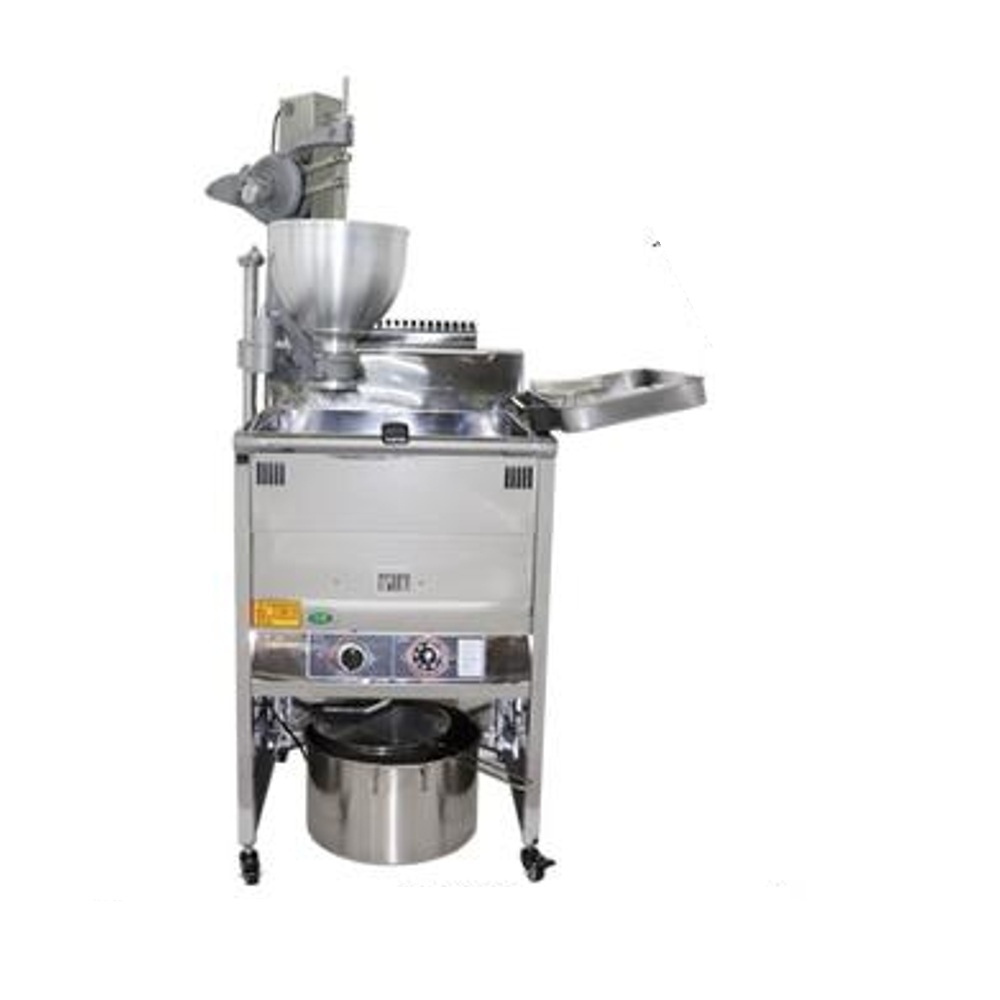

| YB-103SRQ | Electric forming | Gas (LPG / natural gas) | Confirm with enquiry | 50 W | 300–2000 | 9 | 445 × 375 × 195 / 23 L | 70 / 90 |
Common features: Stainless steel construction, 9 L hopper, three mould shapes (flower-ring, ball and ring), and thickness adjustment.
Capacity figures are catalogue ratings; actual output varies with recipe, product size and operating conditions. For gas models, specify LPG or natural gas when requesting a quotation. Electrical power on a gas model refers to its electrical components, not the gas heating output.
Model Selection & Enquiries
Send YEEDABAKE your preferred model, donut size, destination country, voltage and heating requirements for a quotation.
