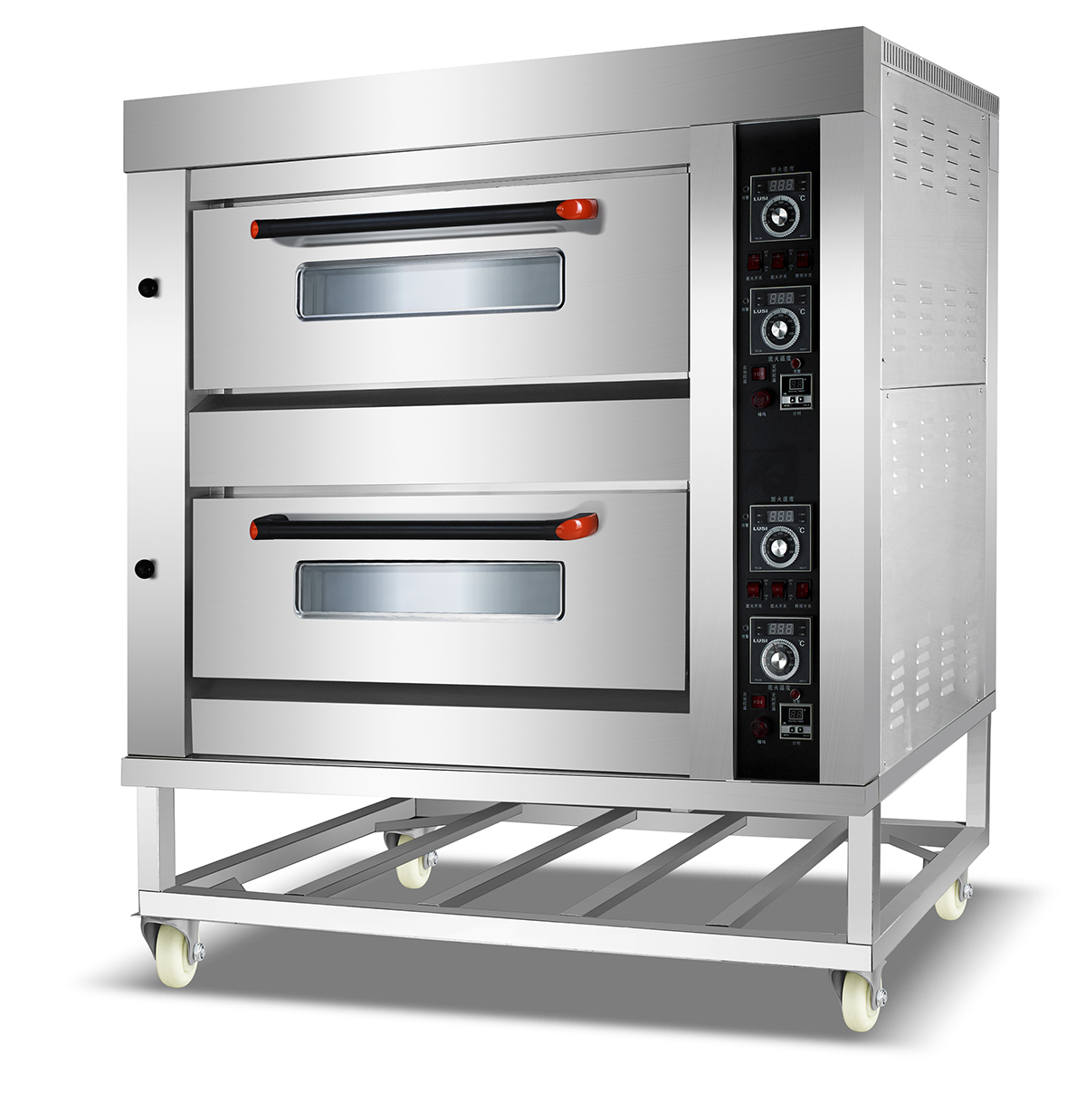

Product Overview
Our commercial deck oven is designed for bakeries, cafés, restaurants, hotels, pizza shops and other food businesses.
It is suitable for baking bread, pizza, cakes, cookies, pastries and a wide range of bakery products. Independent temperature control helps operators adjust the top and bottom heat according to different baking requirements.
Key Features
• Durable commercial construction
• Independent top and bottom temperature control
• Even and consistent baking performance
• Multiple deck and tray configurations available
• Electric and gas heating options available
• Different voltage options can be customized
• Suitable for continuous commercial operation
| Model | Deck / Tray | Dimensions (mm) | Chamber Size (mm) | Power (kW) | Tray Size (mm) | Net Weight (kg) | Trays Included | Temperature | Voltage |
|---|---|---|---|---|---|---|---|---|---|
| YBQ-1D | 1 Deck / 1 Tray | 1020 × 600 × 515 | 630 × 450 × 160 | 0.1 | 400 × 600 | 55 | 1 | Room Temp.–300°C | 220V/50Hz |
| YBQ-2D | 1 Deck / 2 Trays | 1280 × 860 × 675 | 870 × 630 × 225 | 0.1 | 400 × 600 | 105 | 2 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3D | 1 Deck / 3 Trays | 1715 × 860 × 675 | 1305 × 630 × 225 | 0.1 | 400 × 600 | 120 | 3 | Room Temp.–400°C | 220V/50Hz |
| YBQ-2-2D | 2 Decks / 2 Trays | 1020 × 600 × 1025 | 630 × 450 × 160 | 0.2 | 400 × 600 | 110 | 2 | Room Temp.–400°C | 220V/50Hz |
| YBQ-2-4D | 2 Decks / 4 Trays | 1280 × 860 × 1495 | 870 × 630 × 225 | 0.2 | 400 × 600 | 180 | 4 | Room Temp.–400°C | 220V/50Hz |
| YBQ-2-6D | 2 Decks / 6 Trays | 1715 × 860 × 1495 | 1305 × 630 × 225 | 0.2 | 400 × 600 | 250 | 6 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-3D | 3 Decks / 3 Trays | 1020 × 600 × 1435 | 630 × 450 × 160 | 0.3 | 400 × 600 | 160 | 3 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-6D | 3 Decks / 6 Trays | 1280 × 860 × 1730 | 870 × 630 × 225 | 0.3 | 400 × 600 | 260 | 6 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-9D | 3 Decks / 9 Trays | 1715 × 860 × 1730 | 1305 × 630 × 225 | 0.3 | 400 × 600 | 310 | 9 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-12D | 3 Decks / 12 Trays | 1715 × 1060 × 1730 | 1305 × 830 × 225 | 0.6 | 400 × 600 | 360 | 12 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-18D | 3 Decks / 18 Trays | 1715 × 1460 × 1730 | 1310 × 1250 × 225 | 0.6 | 400 × 600 | 660 | 18 | Room Temp.–400°C | 220V/50Hz |
| YBQ-3-24D | 3 Decks / 24 Trays | 1715 × 1900 × 1755 | 1305 × 1670 × 225 | 0.6 | 400 × 600 | 900 | 24 | Room Temp.–400°C | 220V/50Hz |
| YBQ-4-16D | 4 Decks / 16 Trays | 1715 × 1060 × 2205 | 1305 × 830 × 225 | 0.4 | 400 × 600 | 660 | 16 | Room Temp.–400°C | 220V/50Hz |
Applications
Suitable for
baking bread
pizza
cakes
pastries
cookies and other bakery products.
Customization & Export Service
We support different voltage, plug and heating configurations according to customer requirements. Each machine is tested before shipment and packed securely for international transportation.
