Product Details
The YEEDABAKE roll-in combi steamer oven series is designed around a floor-standing cabinet and trolley-loading arrangement. Compare the 20-tray GN 1/1 series with the larger 401-series cabinet.

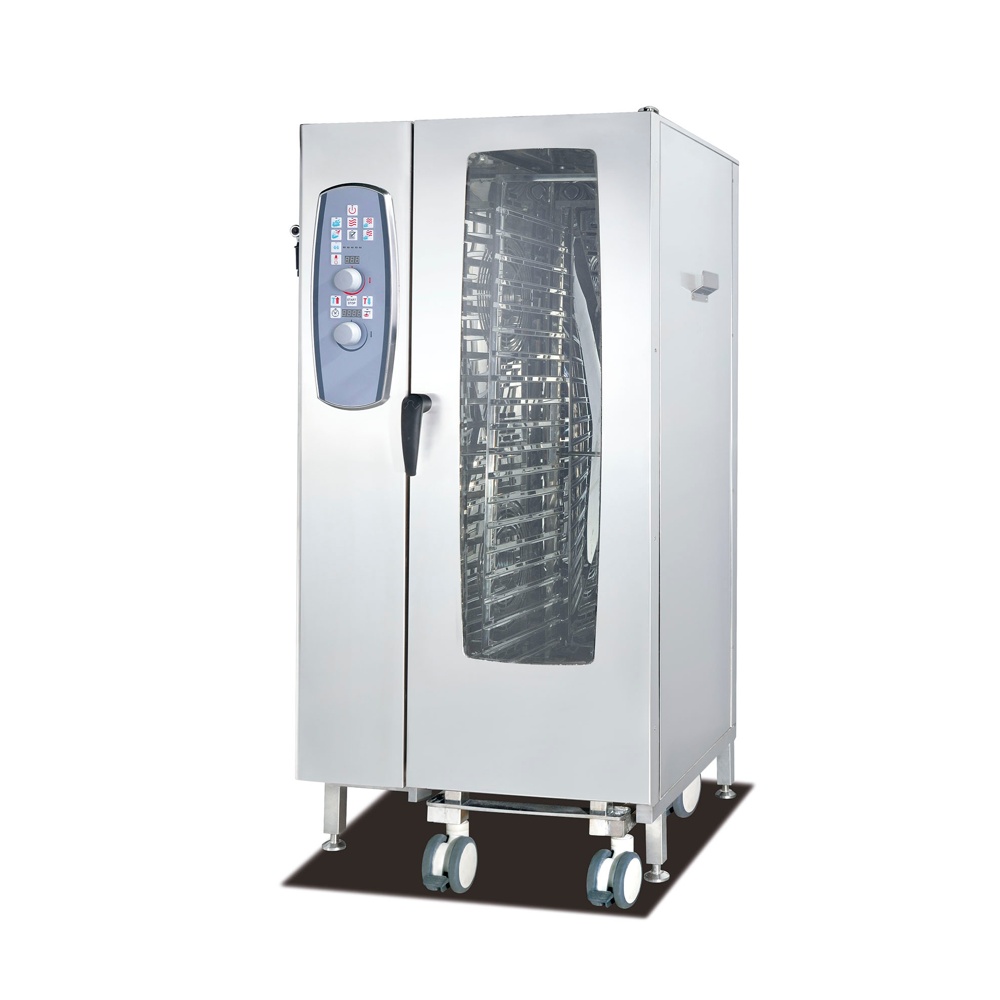

Configuration photos: Photos show example oven appearances and stands. The control panel may differ from the selected CMP, AC, MP, SP or SPJ version. Confirm the exact panel and accessories with your quotation.
Capacity & Control Options
- 201 series: 20 × GN 1/1 capacity; CMP, AC, SP and SPJ control options.
- 401 series: Catalogue capacity of 40 × GN 1/1 equivalent, with GN 2/1 and GN 1/1 formats listed. Confirm the trolley loading layout.
- CMP and AC versions list automatic cleaning; SP and SPJ versions use manual cleaning.
- Hot-air and steam cooking, stainless steel construction and 380V three-phase supply.
Roll-In Combi Oven Specifications
| Model | Tray Capacity | Chamber (L) | Dimensions L × D × H (mm) | Control | Cleaning | Power (kW) | Supply | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| YB-201-CMP | 20 × GN 1/1 | 240 | 879 × 853 × 1950 | Electronic button control | Automatic | 37 | 3NAC 380V | 267 |
| YB-201-AC | 20 × GN 1/1 | 240 | 879 × 853 × 1950 | Touchscreen control | Automatic | 37 | 3NAC 380V | 267 |
| YB-201-SP | 20 × GN 1/1 | 240 | 879 × 853 × 1950 | Basic control | Manual | 37 | 3NAC 380V | 267 |
| YB-201-SPJ | 20 × GN 1/1 | 240 | 879 × 853 × 1950 | Mechanical knobs | Manual | 37 | 3NAC 380V | 267 |
| YB-401-CMP | 40 × GN 1/1 equivalent | 480 | 1086 × 912 × 1950 | Electronic button control | Automatic | 37 | 3NAC 380V | 300 |
| YB-401-AC | 40 × GN 1/1 equivalent | 480 | 1086 × 912 × 1950 | Touchscreen control | Automatic | 37 | 3NAC 380V | 300 |
401 tray capacity: The catalogue lists 40 × GN 1/1 and GN 2/1-compatible trays; this does not mean 40 GN 2/1 shelf levels. Confirm trolley configuration, tray count and rack spacing before ordering. Water inlet: R3/4 inch. Drain: DN32.
Configuration & Quotation
Contact YEEDABAKE with your preferred model, tray format, available power supply and installation requirements. Confirm the selected control-panel version, included trays and accessories with your quotation. Stands shown in the photos are configuration examples; confirm stand inclusion when ordering.
